TECHNICAL DETAILS
- Material : Copper
PRODUCT RANGE
ELECZAR – PIN TYPE INSULATED
| Size | Description (Sq.mm) | Pin | Length | Colour |
| 0.5 | E-E-0508 WH | 8 | mm | White |
| 0.5 | E-E-0510 WH | 10 | mm | White |
| 0.75 | E-E-7508 GY | 8 | mm | Grey |
| 0.75 | E-E-7510 GY | 10 | mm | Grey |
| 1.0 | E-E-1008 RD | 8 | mm | Red |
| 1.0 | E-E-1010 RD | 10 | mm | Red |
| 1.0 | E-E-1012 RD | 12 | mm | Red |
| 1.5 | E-E-1508 BK | 8 | mm | Black |
| 1.5 | E-E-1510 BK | 10 | mm | Black |
| 1.5 | E-E-1512 BK | 12 | mm | Black |
| 2.5 | E-E-2508 BU | 8 | mm | Blue |
| 4.0 | E-E-4009 GY | 9 | mm | Grey |
| 6.0 | E-E-6012 YE/BK | 12 | mm | Yellow Black |
| 10.0 | E-E-10-12 RD/BR | 12 | mm | Red/Brown |
| 16.0 | E-E-16-12 GR | 12 | mm | Green |
| 25.0 | E-E-25-16 BR | 16 | mm | Brown |
| 35.0 | E-E-35-16GY | 16 | mm | Grey |
PIN TYPE INSULATED
| Size (Sq.mm) | Description | Pin Length | Colour |
|---|---|---|---|
| 0.5 | E-TE-0508 WH | 8 mm | White |
| 0.75 | E-TE-7508 GY | 8 mm | Grey |
| 1.0 | E-TE-1008 RD | 8 mm | Red |
| 1.0 | E-TE-1010 RD | 12 mm | Red |
| 1.5 | E-TE-1508 BK | 8 mm | Black |
| 1.5 | E-TE-1512 BK | 12 mm | Black |
| 2.5 | E-TE-2510 BU | 10 mm | Blue |
| 4.0 | E-TE-4012 GY | 12 mm | Grey |
| 6.0 | E-TE-6014 YE/BK | 14 mm | Yellow / Black |
RING TYPE -NON INSULATED
| Size(Sq.mm) | Description |
| 0.5.1.5.4 | E-7003 |
| 0.5.1.5-5 | E-7005 |
| 0.5.1.5.6 | E-7007 |
| 2.54 | E-7009 |
| 2.5-5 | E-7010 |
| 2.56 | E-7011 |
| 2.58 | E-7013 |
| 2.5.10 | E-7115 |
| 2.5.12 | E-7047 |
| 464 | E-7155 |
| 465 | E-7050 |
| 466 | E-7017 |
| 468 | E-7020 |
| 10-5 | E-7025 |
| 106 | E-7120 |
| 10-8 | E-7121 |
| 10-10 | E-7027 |
| 10-12 | E-7028 |
| 16-5 | E-7124 |
| 166 | E-7029 |
| 16-8 | E-7030 |
| 16-10 | E-7128 |
| 256 | E-7156 |
| 258 | E-7034 |
| 25.10 | E-7035 |
| 25.12 | E-7037 |
| 356 | E-7133 |
| 358 | E-7038 |
| 35.12 | E-7040 |
| 50-8 | E-7136 |
| 50-10 | E-7137 |
| 50-12 | E-7042 |
| 50-16 | E-7139 |
| 70-10 | E-7140 |
| 70-12 | E-7141 |
| 70-16 | E-7142 |
PIN TYPE -NON INSULATED
| Size (Sq.mm) | Description |
|---|---|
| 0.5-1.5 | E-CP9 |
| 2.5 | E-CP1 |
| 4 | E-CP3 |
| 6 | E-CP5 |
| 10 | E-CP7 |
| 16 | E-CP8 |
| 25 | E-CP86 |
| 35 | E-CP87 |
| 50 | E-CP88 |
| 70 | E-CP94 |
| 95 | E-CP48 |

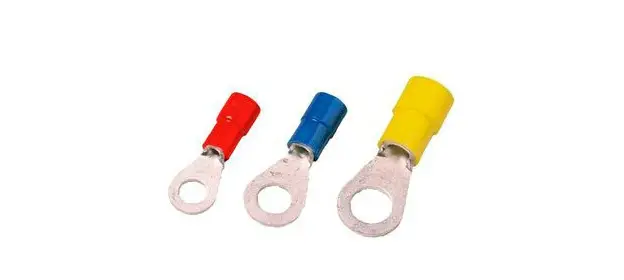

RING TYPE – INSULATED
| Size (Sq mm) | Description |
| 1.5.4 | E-7056 |
| 1.5-5 | E-7062 |
| 1.5-6 | E-7066 |
| 254 | E-7071 |
| 2.5-5 | E-7072 |
| 256 | E-7074 |
| 258 | E-7077 |
| 25.10 | E-7081 |
| 25.10 | E-7081 |
| 25.12 | E-7082 |
| 6.4 | E-7083 |
| 6.5 | E-7084 |
| 6.6 | E-7089 |
| 6-8 | E-7094 |

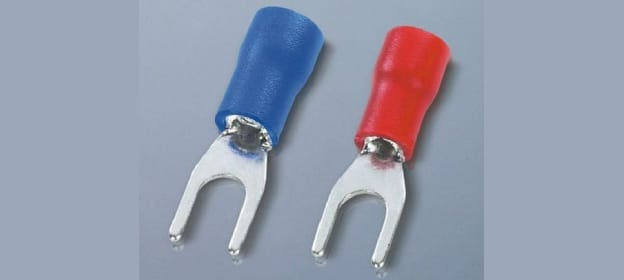

FORK TYPE – INSULATED
| Size(Sq.mm) | Description |
| 1.5 | E-7926 |
| 2.5 | E-7929 |
| 4.6 | E-7930 |
FORK TYPE -NON INSULATED
| Size(Sq.mm) | Description |
| 0.5-1.5-3.5 | E-7249 |
| 2.5-3.5 | E-7251 |
| 4-6-3 | E-7252 |
| 4-6-3.5 | E-7253 |
| 10-6 | E-7254 |
| 10-8 | E-7255 |
| 16-5 | E-8672 |
