Spiral Cable Glands | Strain Relief Cable Gland

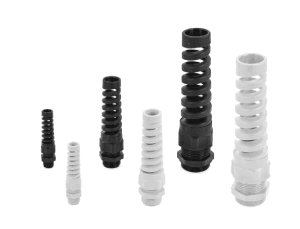

These glands offer maximum protection against conductor fatigue caused by flexing cables. They are designed for kink protection and are primarily used in moving machine assemblies. They are available with a reduced clamping range and a long thread option. These spiral polyamide glands come in PG thread sizes ranging from PG 7 to PG 21, with a clamping range of 3 mm to 18 mm, and in Metric thread sizes from M12 to M25, also with a clamping range of 3 mm to 18 mm.
Technical Data
| Material | Polyamide 6 |
| Colour | RAL 7001 (Grey), RAL 9005 (Black) |
| Temperature Range | -20° C to +100°C Continuous, -30°C to +150°C Intermittent |
| Protection Class | IP 68-5 Bar, 30 min |
| Flammability | UL 94 V2 |
| Thread | PG & Metric |
PRODUCT RANGE
ELECZAR – PG Thread
| Cat. No. Black | Size | Thread Diameter D (mm) | Thread Length L (mm) | Spanner Size (mm) | Clamping Range (mm) | Standard Pack (Pieces) |
| ESCG-B-01 | PG 7 | 12.5 | 8 | 15 | 3 – 6.5 | 100 |
| ESCG-B-02 | PG 9 | 15.2 | 8 | 19 | 4 – 8 | 100 |
| ESCG-B-03 | PG 11 | 18.6 | 8 | 22 | 5 – 10 | 100 |
| ESCG-B-04 | PG 13.5 | 20.4 | 10 | 24 | 6 – 12 | 100 |
| ESCG-B-05 | PG 16 | 22.5 | 10 | 27 | 10 – 14 | 100 |
| ESCG-B-06 | PG 21 | 28.3 | 11 | 33 | 13 – 18 | 100 |
PRODUCT RANGE
ELECZAR – Metric Thread
| Cat. No. Grey | Size | Thread Diameter D (mm) | Thread Length L (mm) | Spanner Size (mm) | Clamping Range (mm) | Standard Pack (Pieces) |
| ESCGM-B-01 | M 12 x 1.5 | 12 | 8 | 15 | 3 – 6.5 | 100 |
| ESCGM-B-01 | M 16 x 1.5 | 16 | 10 | 22 | 5 – 10 | 100 |
| ESCGM-B-02 | M 20 x 1.5 | 20 | 10 | 24 | 6 – 12 | 100 |
| ESCGM-B-03 | M 20 x 1.5 | 20 | 10 | 27 | 10 – 14 | 100 |
| ESCGM-B-05 | M 25 x 1.5 | 25 | 10 | 33 | 13 – 18 | 100 |
